Why a Whole House Water Shut Off Valve Matters in Chicago
A whole house water shut off valve controls water to your entire home from the main supply line. A manual valve lets you stop water during an emergency, while a smart automatic system can monitor unusual flow or pressure and close the valve when it detects a likely leak.
For reliable protection, install the valve on the main line before water branches to fixtures and appliances. Choose a full-port valve that matches your pipe size, keep a manual override accessible, and have a licensed plumber handle any pipe cutting or main-line work. This matters in Chicago, where hidden leaks, failed water heaters, and frozen pipes can cause major damage before anyone sees the problem.
Our team at Baethke Plumbing works with Chicago homeowners on water-line upgrades, leak prevention, and whole house water shut off valve installations. Our plumbing experience includes helping homeowners choose durable, code-conscious solutions that protect their property when water problems happen fast.
Types of Whole House Water Shut Off Valve Systems
Every residential plumbing network depends on a functional primary shutoff point. When water enters a property from the municipal main under the street, it passes through the water meter before distributing into branch lines for kitchens, bathrooms, boilers, and outdoor spigots. If a pipe ruptures, knowing the location and mechanical condition of your main shutoff is essential.
Residential main shutoffs fall into three primary categories: legacy manual gate valves, modern manual quarter-turn ball valves, and motorized smart shutoff systems.
| Valve Category | Operation Mechanism | Flow Restriction | Leak Detection Capability | Power Dependency | Best Suited For |
|---|---|---|---|---|---|
| Manual Gate Valve | Multi-turn wheel lowering internal brass gate | Moderate to High (due to mineral scale buildup) | None (purely manual) | None | Legacy installations (recommended for replacement) |
| Manual Ball Valve | Quarter-turn lever rotating bored sphere | None (full-port designs) | None (requires physical human operation) | None | Standard emergency manual shutoff upgrades |
| Smart Consumer Auto-Valve | Motorized actuator on ball valve | None (full-port designs) | High (ultrasonic or turbine flow sensors, pressure wave testing) | 120V AC with battery backup or UPS | Modern single-family homes and multi-family condos |
| Commercial Leak Defense | Motorized commercial valve with wired control panel | None (full-port, high GPM) | Maximum (flow sensitivity down to 0.005 GPM, radio frequency) | 24V or 120V hardwired with continuous backup | Luxury estates, high-demand multi-unit residential properties |
Manual Ball Valves vs. Aging Gate Valves
Older Chicago homes across neighborhoods like Logan Square, Ravenswood, and Lincoln Park often rely on multi-turn gate valves installed decades ago. Gate valves utilize an internal wedge that lowers perpendicularly into the water stream when you twist a circular wheel handle. Over years of contact with municipal water minerals, these internal gates corrode, collect sediment, or break off the stem entirely. When an emergency strikes, an aging gate valve frequently refuses to turn, snaps under hand pressure, or fails to create a watertight seal.
A modern quarter-turn brass ball valve solves these mechanical vulnerabilities. Inside the valve body, a solid chrome-plated or stainless steel sphere with a center hole rotates 90 degrees between open and closed positions. When the lever is parallel to the pipe, water flows unobstructed; when perpendicular, flow stops completely.
Investing in full-port quarter-turn ball valves ensures your home maintains maximum water volume without pressure loss. Maintaining these fixtures through routine plumbing preventative maintenance keeps the valve operational and prevents internal scaling from seizing the mechanism over time.

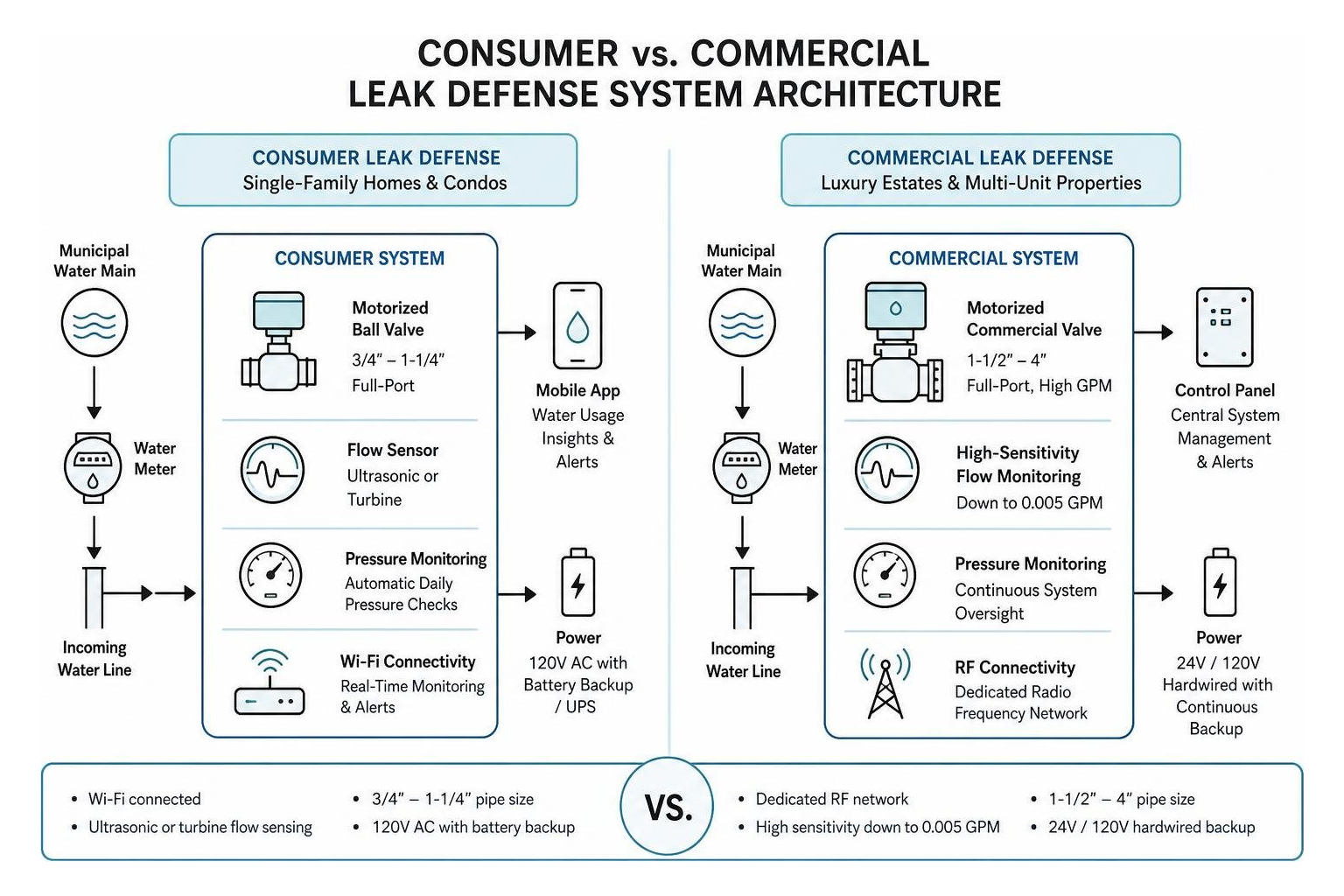

Consumer vs. Commercial Whole House Water Shut Off Valve Features
Homeowners seeking automated property protection have two distinct equipment tiers to consider: consumer-focused smart valves and commercial-grade leak defense assemblies.
Consumer models integrate motorized ball valves directly with digital flow meters and mobile applications. These systems connect to residential Wi-Fi networks, provide real-time water consumption insights to your phone, and conduct automated daily pressure checks. They excel in single-family residential homes and multi-family condo buildings where incoming supply lines range from 3/4-inch to 1-1/4-inch diameters.
Commercial-grade systems cater to large luxury estates with sprawling footprints, multi-inch main risers, or complex plumbing configurations with dozens of fixtures. These professional installations use dedicated radio frequencies rather than residential Wi-Fi to communicate with remote sensors, ensuring continuous local operation even during network outages.
How Smart Water Leak Detectors and Auto-Shutoff Valves Work
Smart automatic shutoff systems convert an ordinary mechanical pipe into an active monitoring hub. Rather than waiting for water to pool on the floor, these devices continuously measure water movement, dynamic pressure shifts, and ambient ambient temperature within your plumbing network.
When the internal computer detects flow patterns outside established household parameters, such as a continuous micro-stream while the family is asleep, or an extreme surge matching a catastrophic rupture, the unit signals its motorized actuator to rotate the ball valve closed. The system simultaneously dispatches push notifications, SMS alerts, or automated phone calls to the property owner.
Flow Sensor Technology: Ultrasonic vs. Mechanical Turbine
The method used to track water movement determines a smart valve’s long-term reliability and sensitivity:
- Mechanical Turbine Flow Sensors: These assemblies employ an internal plastic or composite impeller wheel that spins as water passes through the valve body. A magnetic sensor records the rotation speed to calculate volume. While effective for measuring standard tap usage, mechanical turbines introduce moving components directly into the water stream. Over time, suspended sediment, hard water minerals, and pipe debris can cause friction wear on the turbine bearings, reducing accuracy for ultra-slow drips.
- High-Definition Ultrasonic Flow Sensors: Advanced smart valves utilize solid-state ultrasonic transducers positioned along the flow channel. The device transmits sound waves upstream and downstream through the moving water, calculating flow rates based on microscopic transit-time differentials. Because ultrasonic sensors contain zero moving parts, they suffer no mechanical degradation and maintain high sensitivity. They can detect subtle plumbing defects, such as a toilet flapper weeping a half-ounce of water per minute or a microscopic pinhole leak behind drywall.
Managing False Alarms and High-Usage Fixtures
A common concern among property owners is whether an automated valve will accidentally shut off the water during normal activities. To prevent nuisance tripping, smart valves undergo an initial onboarding phase lasting approximately 7 to 21 days (often tracking roughly 1,000 unique water events). During this calibration window, the system’s machine-learning algorithm learns your household’s baseline habits, noting the duration of showers, washing machine cycles, and sink usage.
Plumbing fixtures with irregular or extended runtimes require thoughtful planning:
- Whole-House Humidifiers & Water Softeners: Nighttime water softener regeneration cycles or continuous winter furnace humidifiers can mimic slow plumbing leaks. Most smart systems allow users to configure scheduled sleep modes or designated maintenance windows so these automated appliances operate without triggering alerts.
- Lawn Irrigation & Pool Auto-Fill Lines: Irrigation systems move massive volumes of water for extended periods, which could trigger a high-flow burst alert. Installing the smart shutoff valve downstream of dedicated fire sprinkler branches and coordinating exterior irrigation zones helps prevent unexpected shutoffs.
- Entertaining and Large Gatherings: When hosting dinner parties or overnight guests, simultaneous fixture usage increases significantly. Companion smartphone apps provide one-touch “Party” or “High Usage” modes that temporarily widen flow duration thresholds.
Installation, Sizing, and Power Backup Considerations
Installing an automatic shutoff valve requires precise physical plumbing alterations on the primary incoming water service line. The device must be situated indoors downstream of the utility water meter and primary manual shutoff, but upstream of any domestic plumbing splits.
Standard residential supply pipes measure 3/4-inch or 1-inch National Pipe Taper (NPT) threading, while expansive properties require 1-1/4-inch to 2-inch fittings. For Chicago homeowners, professional whole house shut off installation helps ensure the new valve is properly sized, accessible, and integrated into the main water line without restricting flow.
Cutting into pressurized copper or brass main lines requires professional precision. During a sudden residential plumbing failure or burst pipe emergency, having a properly sized, unconstricted shutoff valve is what stands between a manageable cleanup and serious structural damage.
Power Outages, Battery Backups, and Manual Overrides
Because smart valves rely on electric motors to actuate the internal ball mechanism, property owners must account for potential electrical outages. If a severe thunderstorm knocks out local grid power in Edison Park or Sauganash, how does the system maintain protection?
- Integrated Manual Override Handles: Professional smart valves feature physical manual override levers, knobs, or detachable actuator heads. If electrical power or Wi-Fi drops, a homeowner can physically open or close the valve without tools.
- Onboard Battery Trays: Many standalone automatic shutoff kits incorporate battery trays holding 4 AA alkaline batteries. These internal cells provide emergency direct-current (DC) power to close the valve if connected moisture pucks detect flooding during a blackout.
- Uninterruptible Power Supplies (UPS): For Wi-Fi-enabled smart monitors powered by 120V AC wall adapters, plugging the power cord into a dedicated mini-UPS battery backup guarantees uninterrupted flow monitoring and remote network reporting through extended power disruptions.
Sizing and Potable Water Standards for Older Chicago Homes
Plumbing materials in our service areas, from historic bungalows in Jefferson Park to multi-story brownstones in Old Town, span various eras of architectural construction. When cutting into main water lines to install modern valves, components must meet strict health codes.
Valves installed on drinking water lines must comply with NSF/ANSI 61 for potable water safety and NSF 372 for lead-free compliance. Using non-certified industrial brass valves risks chemical leaching into your household water. Furthermore, many historic homes contain aging galvanized steel pipes that have narrowed internally from decades of mineral accumulation.
When upgrading main line valves on deteriorated plumbing, pairing the project with repiping replaces corroded lines with smooth, durable copper or PEX supply lines, restoring balanced water pressure throughout the structure.
Insurance Savings, Smart Home Integration, and ROI
Water damage is among the leading causes of residential property loss in the United States. A slow drip from an icemaker supply line or a hidden pinhole pipe leak can cause extensive damage to flooring, framing, and drywall before anyone notices standing moisture.
Because automatic shutoff valves mitigate catastrophic property damage, major insurance carriers may offer premium discounts or installation rebates. Availability varies by carrier and policy, so ask your insurance agent what documentation they need after installation.

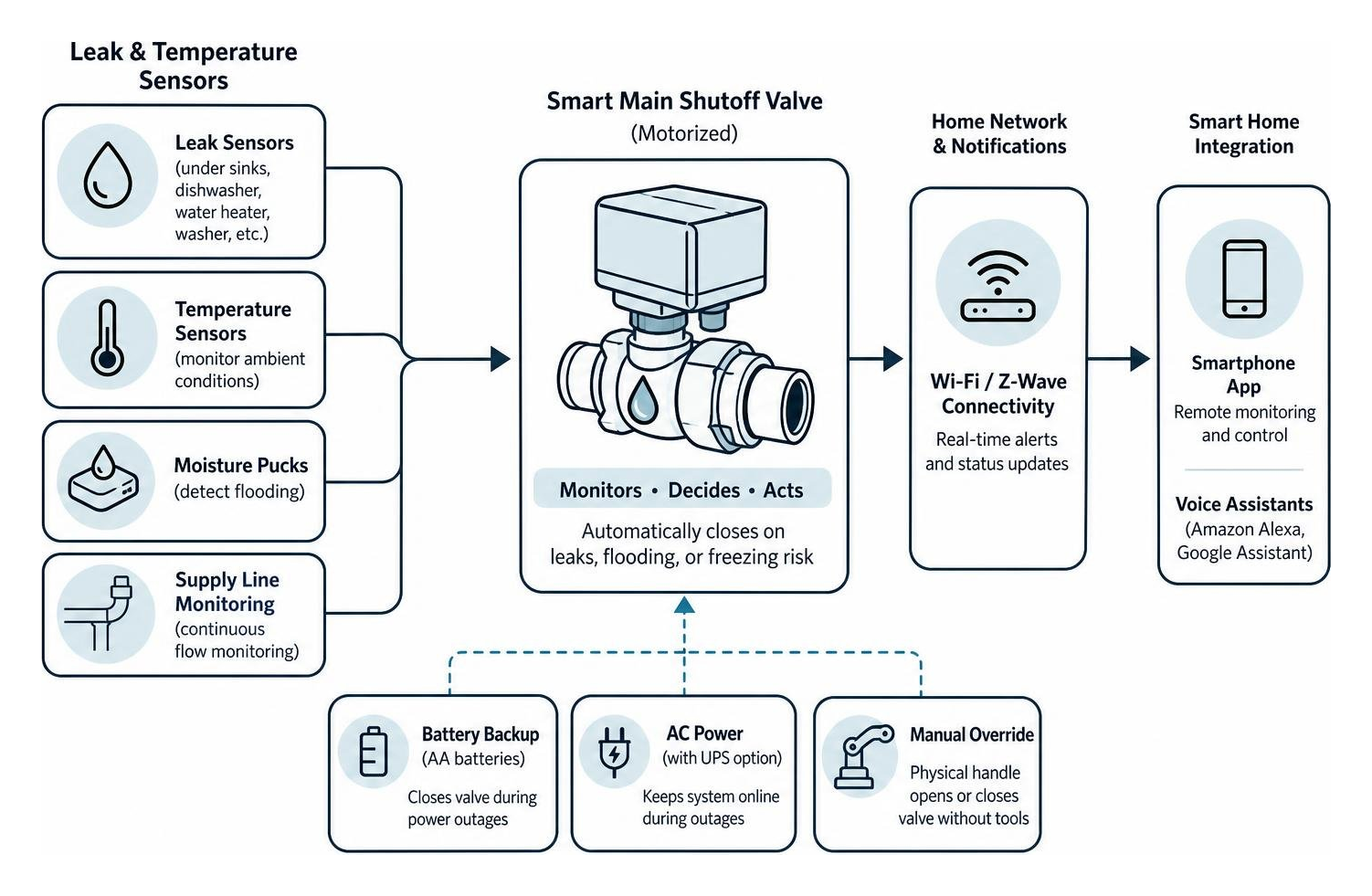

Smart shutoff systems also integrate with existing home automation platforms. Systems supporting the Z-Wave 700 series protocol, Amazon Alexa, or Google Assistant can coordinate with standalone wireless moisture sensors placed under dishwashers, water heaters, and washing machines. When an auxiliary sensor gets wet, it instantly commands the main valve to close.
Upgrading Your Whole House Water Shut Off Valve to Prevent Frozen Pipe Disasters
Chicago winters present serious freeze-thaw plumbing risks. Sub-zero polar vortex events frequently freeze water lines running through uninsulated crawlspaces, exterior foundation walls, and unheated basements in neighborhoods like Andersonville and North Center.
When water freezes, it expands by approximately 9%, creating extreme hydraulic pressure that splits copper pipes. Smart whole-house shutoff valves feature integrated ambient temperature sensors that monitor local conditions.
When basement air drops toward dangerous thresholds, the device issues pre-freeze notifications to your phone. Understanding basic seasonal frozen pipe prevention and pairing that knowledge with an automated valve allows you to shut off and drain exposed sections before freezing pipes can burst.
Professional Installation and Long-Term Reliability
Correctly mounting a whole-house shutoff device requires proper plumbing alignment, code compliance, and backflow prevention. Drops in municipal water pressure can draw water backward across flow sensors, distorting usage data unless a certified backflow preventer is present. Additionally, automated self-exercising routines periodically cycle the internal ball mechanism, preventing hard water minerals from seizing the valve.
For dependable leak protection, schedule installation with our licensed team to ensure your main supply line meets all local plumbing codes.
Frequently Asked Questions About Main Water Shutoff Valves
Can a smart shutoff valve protect my home during freezing Chicago winters?
Yes. Modern smart shutoff valves include ambient temperature sensors that track environmental conditions near your incoming water service. When local air temperatures drop near freezing, the unit sends proactive alerts to your smartphone so you can insulate exposed pipes or open cabinet doors. If an unmonitored line freezes and splits during a severe cold snap, the system’s ultrasonic flow sensors recognize the sudden water rush and immediately close the main valve, preventing major flood damage.
What happens to an automatic shutoff valve during an electrical power outage?
If electrical power fails, high-quality automatic shutoff valves remain in their current operational position, open or closed, without unexpectedly disrupting your household water supply. For ongoing emergency protection during a storm, these systems feature integrated manual override handles, onboard backup battery packs, or connections to uninterruptible power supply (UPS) units. This ensures you can always open or close your water main manually regardless of grid power availability.
Do homeowners insurance companies offer discounts for installing automatic shutoff valves?
Yes. Many insurance providers offer policy premium discounts or installation rebates for homeowners who install whole-house automatic water shutoff valves. Because non-weather water damage accounts for a significant portion of all residential insurance claims, carriers encourage smart valve adoption. After professional installation by a licensed plumbing contractor, your installer can provide documented certification to submit to your insurance agent for policy credit.
Protecting Your Chicago Home with Baethke Plumbing
A functional whole-house water shutoff valve gives you vital control over your residential plumbing system. Whether you are replacing a seized, corroded gate valve with a durable manual brass ball valve or upgrading to an automated, sensor-driven leak detection system, having reliable shutoff capability protects your property against unexpected flooding.
